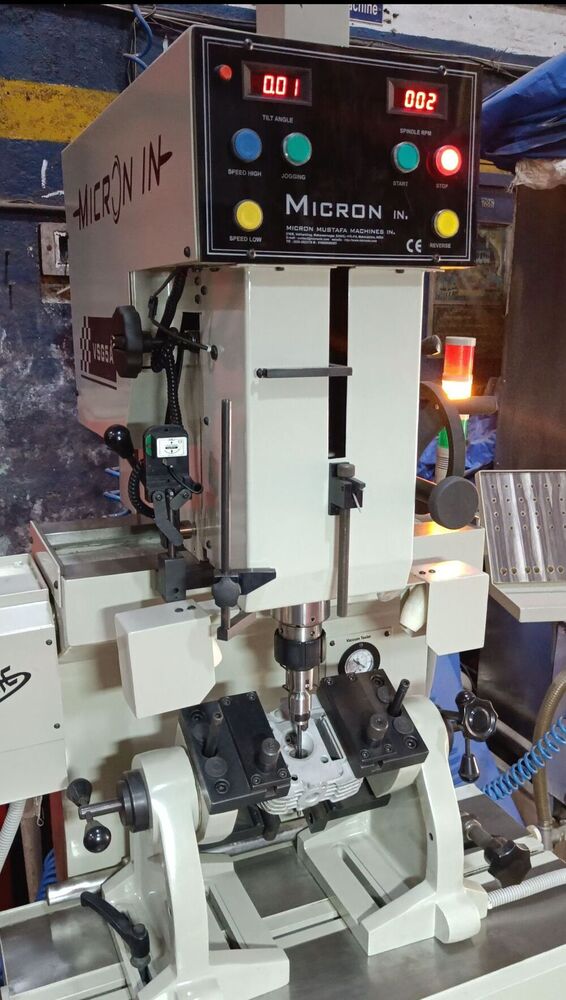

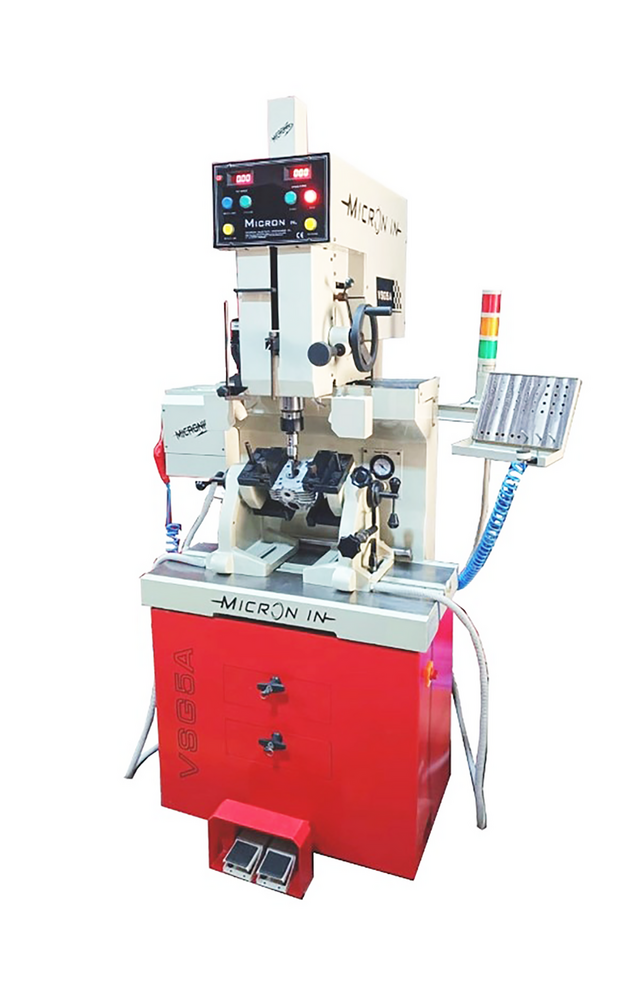

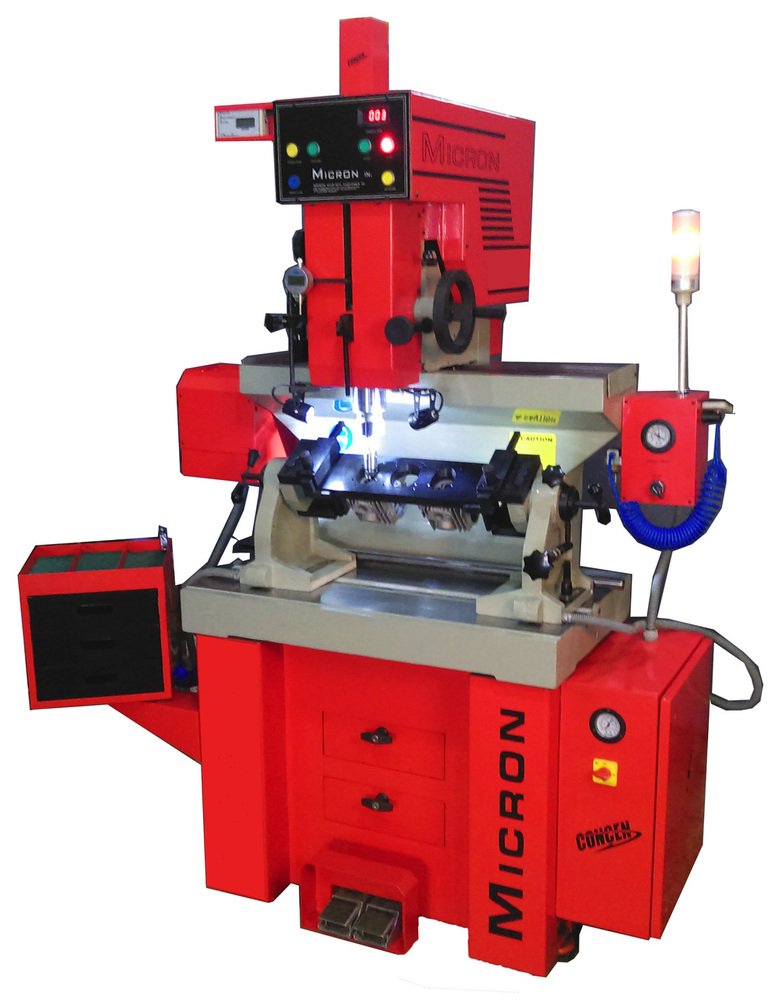

VSG5 Valve Seat Cutting Machine

About VSG5 Valve Seat Cutting Machine

Main Features: Micron VSG5

• Single Air Float Centering:
  Single air float on the power head ensures rapid and precise guide centering with side handwheel for fast spindle feed and front knob for fine adjustments.
• High Torque Spindle Motor:
  1 HP (0.75 kW) AC motor with frequency inverter provides consistent torque up to 400 RPM, delivering superior surface finishes on hard valve seats.
• Advanced Tooling Setup:
  Spindle adapter, ball holder, and fixed carbide pilot with ring spring reduce machining time, minimize runout, and improve seat concentricity.
• Durable Cast Iron Build:
  Thick-wall cast iron construction ensures rigidity and precision. Flame-hardened, stress-relieved components maintain long-term accuracy.
• Efficient Multi-Angle Cutting:
  Single-blade inserts cut three angles simultaneously for precise valve seats with superior surface finish and leak-proof sealing.

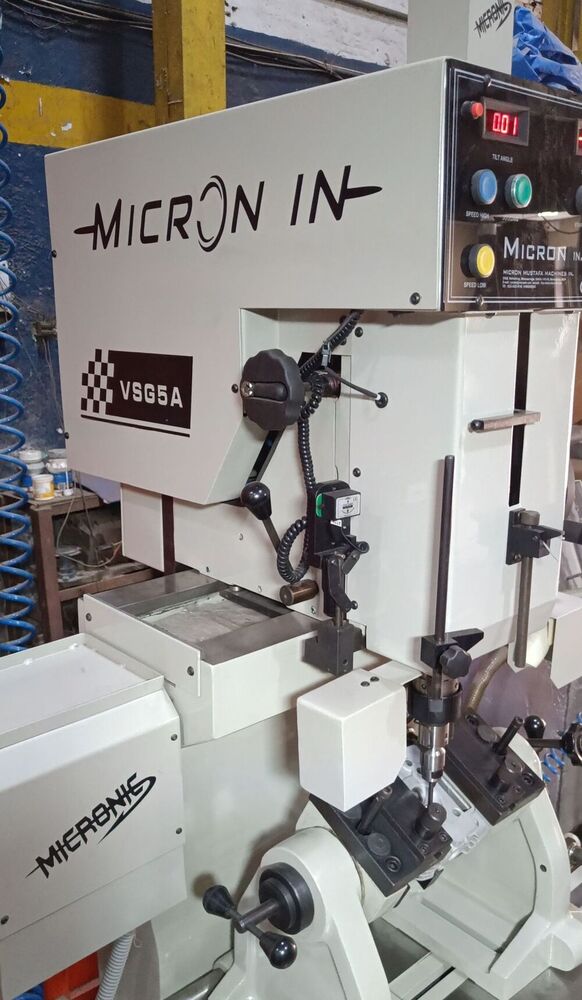

• Flexible Spindle Head:
  Tilts up to 15 degrees on both sides for versatile machining.
• Compact Design:
  Space-efficient, handling a wide range of cylinder heads, including motorcycles and small engines.
• Variable Spindle Speed Control:
  Adjustable from 30 to 400 RPM without stopping rotation.
• User-Friendly Design:
  Ergonomic layout for enhanced comfort and efficient operation.
