VSG8A Valve Seat Cutting Machine

Main Feature : VSG8A

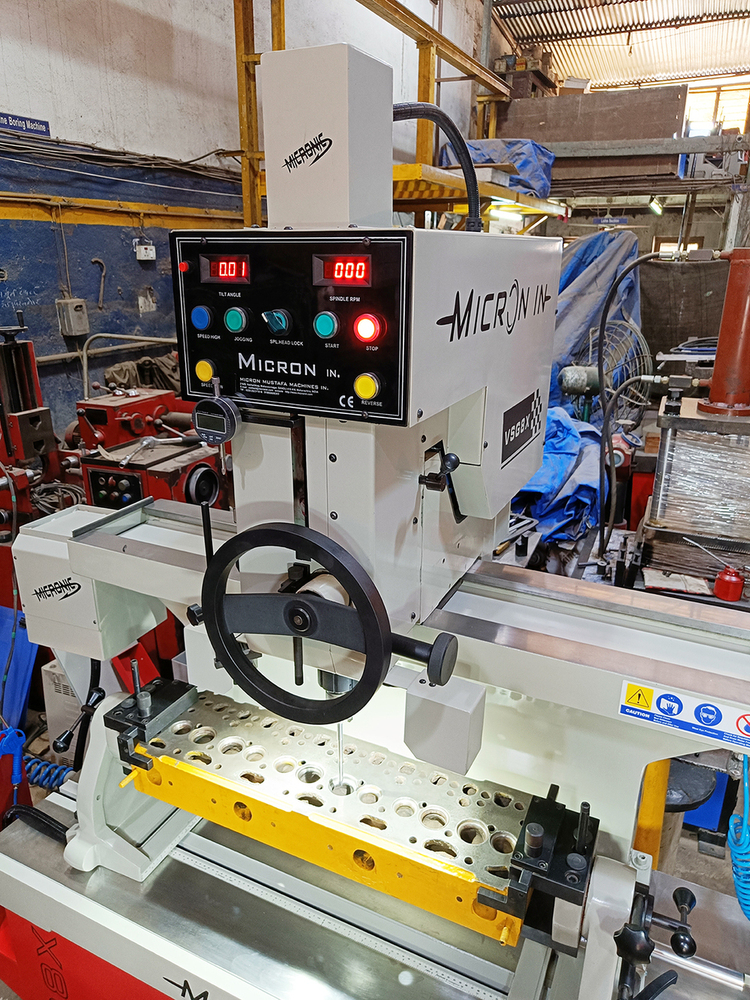

1. The Micron VSG8A uses the proven fixed carbide pilot tooling with front mount steering

wheel for spindle downfeed. The machine has two modes of operation, Front Wheel forRapid control feed and Side Knob wheel for Precise Fine Feed

2. VSG8A Spindle powered by 1Hp (0.75kW) High Torque AC Spindle Motor

Frequency Invertor to control spindle torque throughout the speed range 400 Rpm . This

control Gives maximum torque at all speeds resulting in fine surface finish even with the hardest valve seats Found in todayïs CNG Engines

3. VSG8A Opts Spindle adopter, Ball holder, Fixed Carbide Pilot combination Ring Spring for

lifting Ball Holder result is reduced time to complete job with less runout and Better Concentricity.

4. Micron VSG8A machines are manufactured from heavy thick wall cast iron.The all cast iron Rigid platform is precision machined providing superior Accuracy as

compared to fabricated steel. Rigidity is vital in producing Optimum Accuratechatter free valve seat cutting.All Cast Parts Are Flame Hardened and Stress Relived, which Will lead to RepeatedAccuracy and Long Last

5. Three angle single blades insert cuts all three angles at once and produce accurate finishedseat with finer Ra Value surface with Leak proof sealing between Valve And valve seat.

They assure exact seat width from head to head plus concentricity between seat and guide

6. Spindle Head Tilts to 15 degree on both Sides to accommodate any Guide Axis ForMachining of All New Generation Imported and Indian Cylinder Head

7. Advance Design of Spindle Adopter Assemblyreduced time to complete job with less runout and Better Concentricity.

8. Takes Minimum Floor Space to Handle the Complete Range Of Small Cars, Passenger Car &Pick Van/trucks Cylinder Heads

9. Dial In Variable Spindle Speed 30 to 400 Rpm Without Stopping the Rotation
