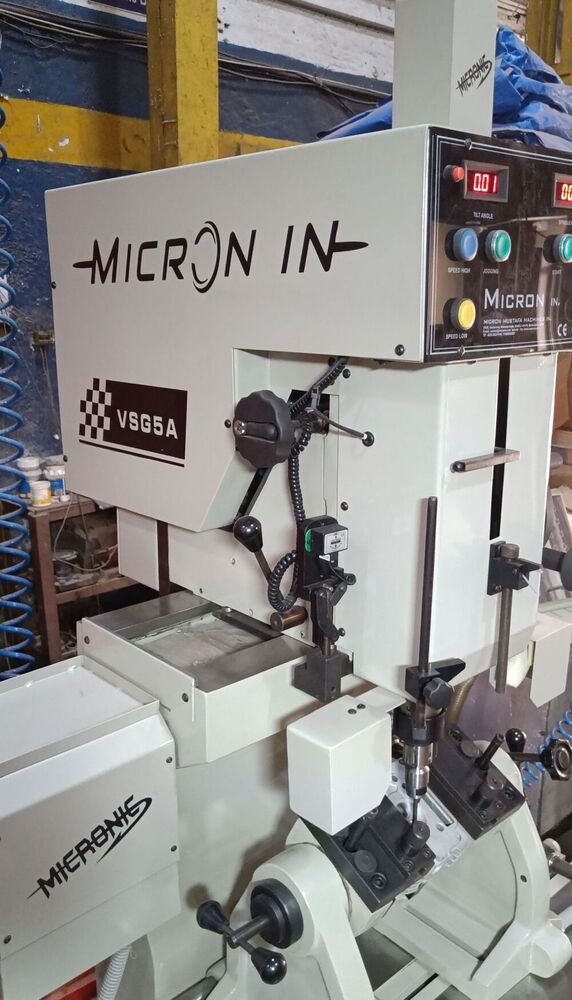

VSG5A Valve Seat Cutting Machine

About VSG5A Valve Seat Cutting Machine

Key Features: Micron VSG5A

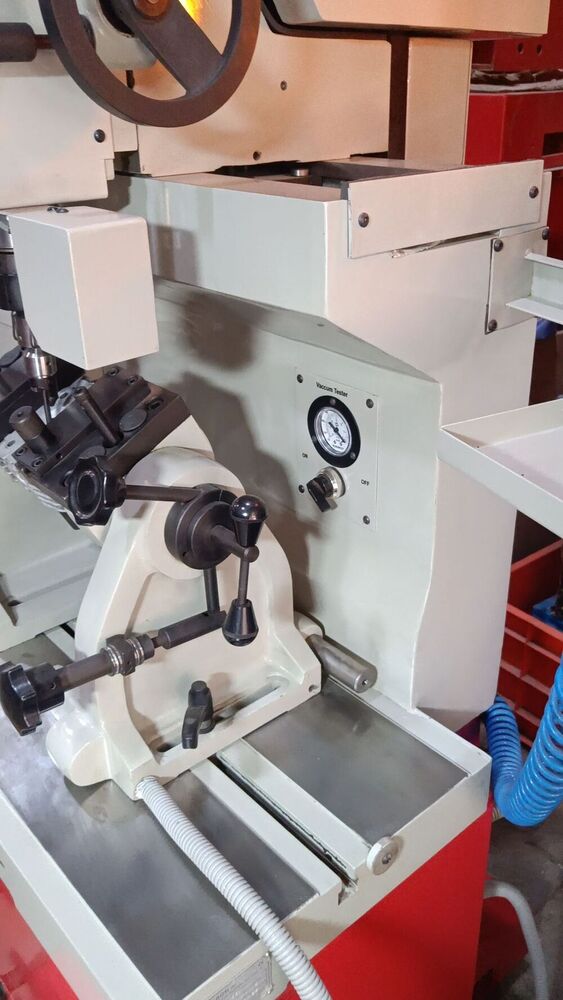

1. Double Air Float Centering:

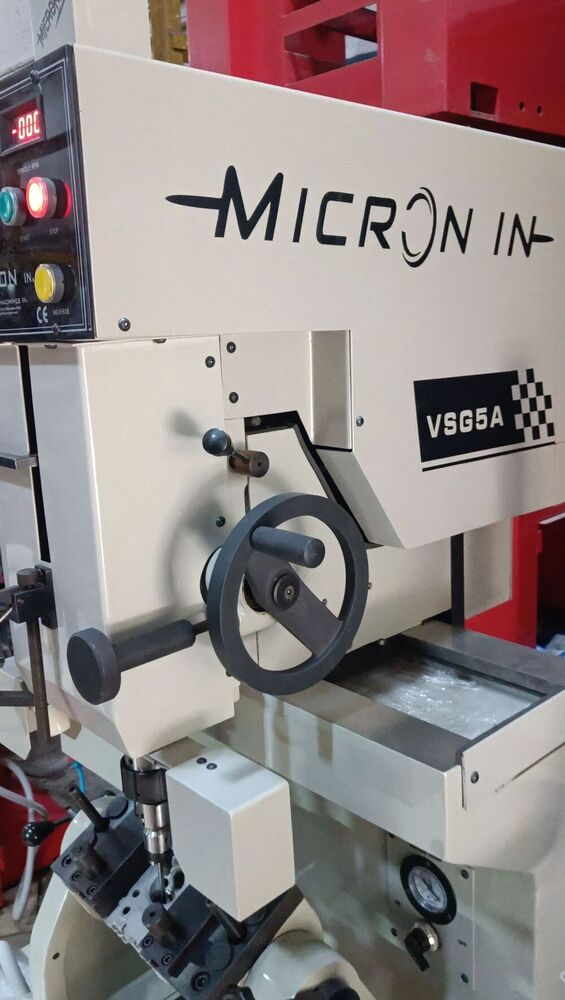

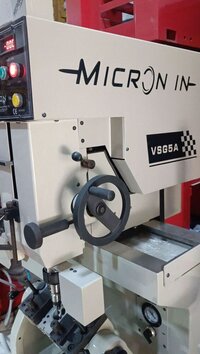

   Independent air float systems for power and work heads ensure precise guide centering. Side handwheel for rapid feed and front knob for fine adjustments.
2. High Torque Spindle Drive:
   1 HP (0.75 kW) AC spindle motor with frequency inverter maintains torque up to 400 RPM for superior surface finish on hard valve seats.
3. Optimized Tooling:

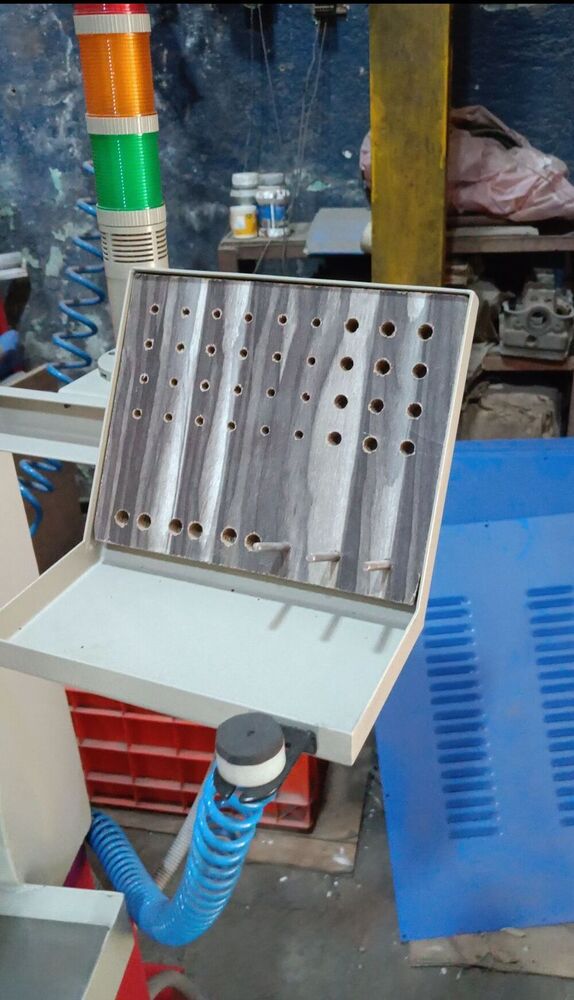

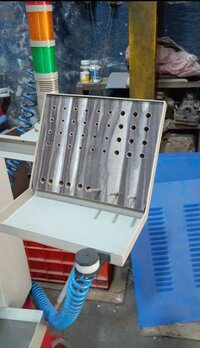

   Spindle adapter, ball holder, and fixed carbide pilot with ring spring reduce machining time and enhance seat concentricity.
4. Durable Cast Iron Build:
   Thick-wall cast iron construction provides rigidity and vibration-free cutting. Precision-machined, flame-hardened, and stress-relieved for long-lasting accuracy.
5. Multi-Angle Cutting:
   Three-angle single-blade insert cuts all angles simultaneously for precise, leak-proof valve seats with a finer Ra surface finish.
6. Tiltable Spindle Head:
   Tilts up to 15 on both sides for versatile machining of modern cylinder heads

7. Compact Design:
   Space-efficient, suitable for a wide range of cylinder heads, including motorcycles and small engines.
8. Variable Spindle Speed:
   Adjustable from 30 to 400 RPM without stopping rotation.
9. Operator-Friendly Design:
   Ergonomic layout for enhanced comfort and productivity.
