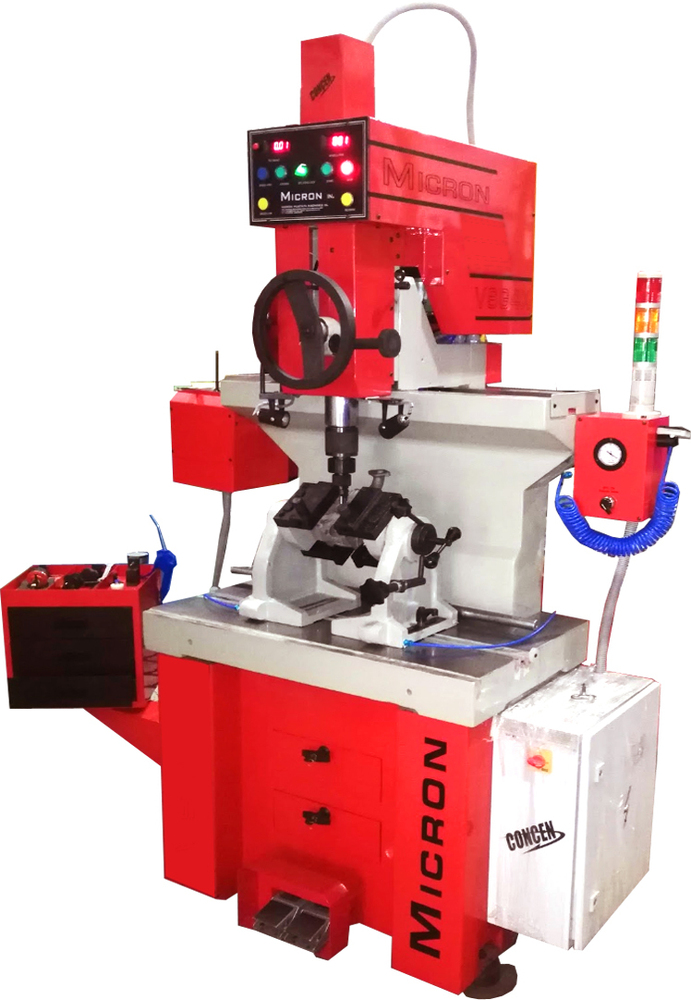

VSG5SPlus Valve Seat Guide Machine

Product Description

Main Feature : VSG5SPLUS

1. TheMicron VSG5S PLUS uses the proven fixed carbide pilot tooling with front mountsteering

wheel for spindle downfeed. The machine hastwo modes of operation, Front Wheel for Rapid

control feed and Side Knob wheel for Precise FineFeed

2. VSG5S PLUS Spindle powered by 1Hp (0.75kW)High Torque AC Spindle Motor

Frequency Invertor to control spindletorque throughout the speed range 400 Rpm . This

control Gives maximum torque at all speeds resulting in fine surface finisheven with the hardest

valve seats Found in todayïs CNG Engines

3. VSG5S PLUS Opts Spindle adopter, Ball holder,Fixed Carbide Pilot combination Ring Springfor lifting Ball Holder result isreduced time to complete job with less runout and Better Concentricity.

4. Micron VSG5S PLUS machines are manufacturedfrom heavy thick wall cast iron. The all cast iron

Rigid platform is precision machinedproviding superior

Accuracy as compared to fabricated steel.Rigidity is vital in producing Optimum Accurate

chatter free valve seat cutting.

All Cast Parts Are Flame Hardened andStress Relived, which Will lead to Repeated Accuracy

and Long Last

5. Threeangle single blades insert cuts all three angles at once and produce accuratefinished seat

with finer Ra Value surface with Leakproof sealing between Valve And valve seat.They assure

exact seat width from head to head plusconcentricity between seat and guide

6.Spindle Head Tilts to 15 degree on both Sides to accommodate any GuideAxis For

Machining of All New Generation Importedand Indian Cylinder Head

7. AdvanceDesign of Spindle Adopter Assembly with auto-lift

pilot mechanism reduced time to completejob with less runout and Better Concentricity.

8. TakesMinimum Floor Space to Handle the Complete Range Of Small Cars, Passenger Car&

Pick Van/trucks Cylinder Heads

9. DialIn Variable Spindle Speed 30 to 400 Rpm Without Stopping the Rotation
