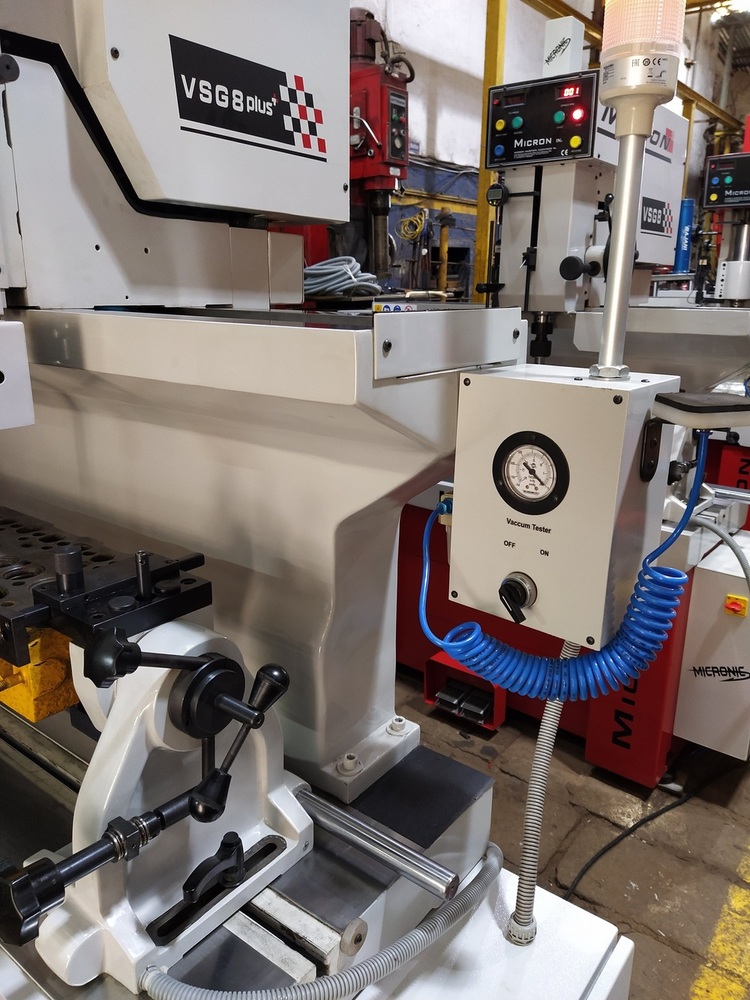

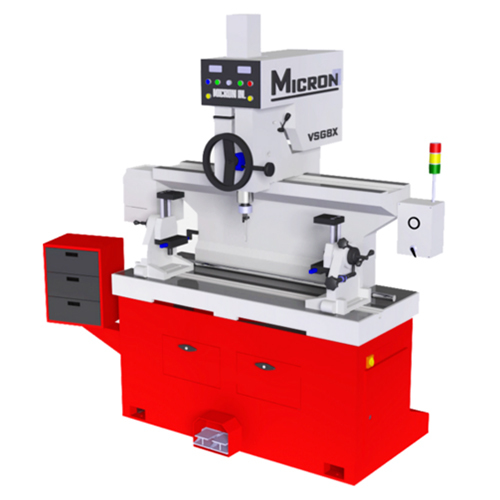

VSG8Plus Valve Seat Guide Machine

Main Feature : VSG8Plus

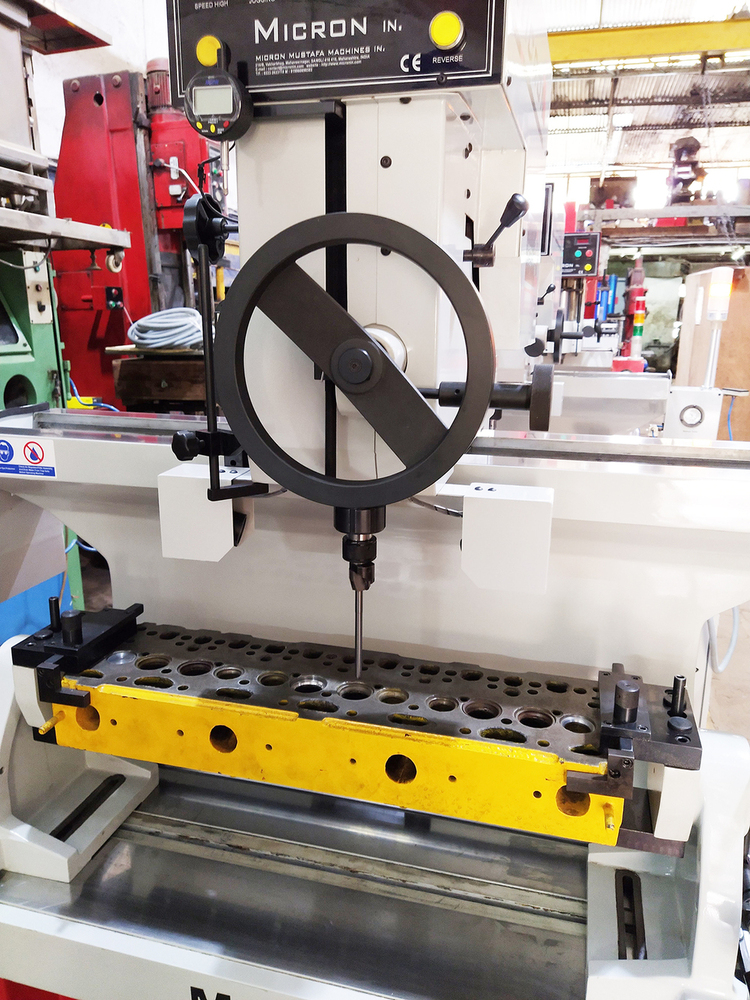

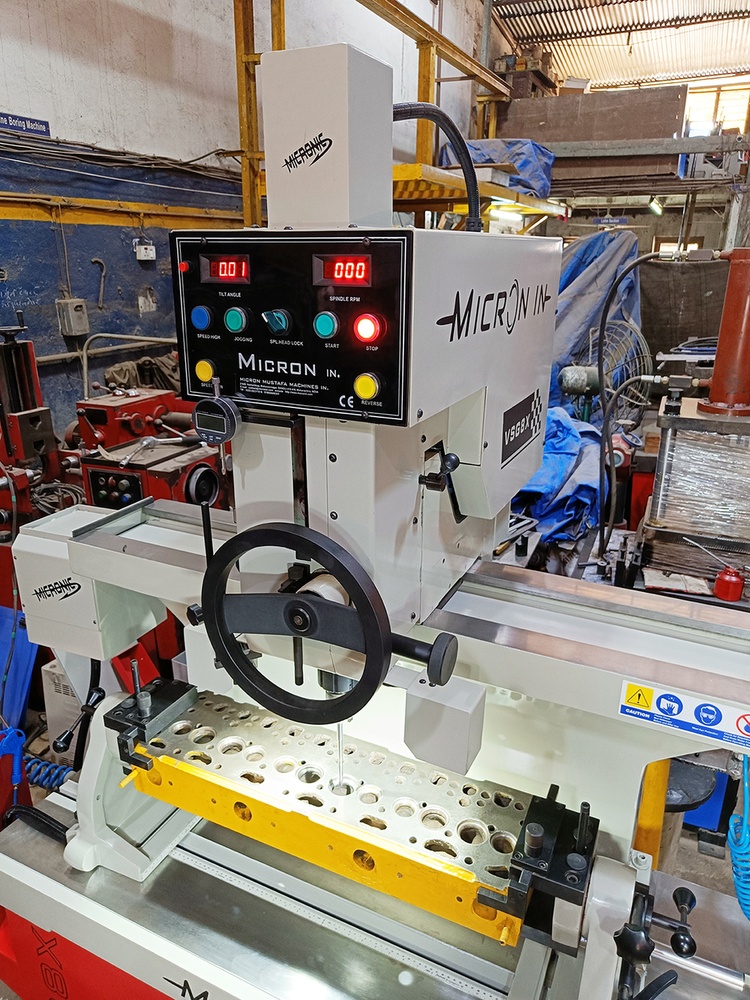

1.  The Micron VSG8Plus uses the proven fixed carbide pilot tooling with front mount      steering wheel for spindle downfeed. The machine has two modes of operation, Front Wheel for Rapid control feed and Side Knob wheel for Precise Fine Feed

2.  VSG8Plus Spindle powered by 1Hp (0.75kW) High Torque AC Spindle Motor Frequency      Invertor to control spindle torque throughout the speed range 400 Rpm . This control

Gives maximum torque at all speeds resulting in fine surface finish even with the hardest valve seats Found in today™s CNG Engines

3.  VSG8Plus Spherical Centering System With Solenoid Locking, Power Head And Work

     head Air Floats Independently in 3axis to insure Fast And Accurate Guide Centering

4.  Micron VSG8Plus machines are manufactured from heavy thick wall cast iron. The all cast iron Rigid platform is precision machined providing superior  Accuracy as compared fabricated      steel. Rigidity is vital in producing Optimum Accurate chatter  free valve seat cutting. All Cast Parts Are Flame Hardened and Stress Relived, which Will lead to Repeated Accuracy and Long Last

 5. Three angle Single Blades Inserts Cuts All three Angles at Once and Produce Accurate    Finished Seat With NO GRINDING  NO LAPPING. They assure exact seat width from Head to Head plus CONCENTRICITY Between Seat and Guide

 6.  Spindle Head Tilts to 15 degree on both Sides to accommodate any Guide Axis For Machining of All New Generation Imported and Indian Cylinder Head

 7.   Modular Wide Selection range of Tooling™s and Advance Design of Spindle Adopter Assembly mechanism reduced time to complete job with less runout and Better Concentricity.

8.  Takes Minimum Floor Space to Handle the Complete Range Of Heavy Automotive and     Industrial Cylinder Heads

   9.  Dial In Variable Spindle Speed 30 to 400 Rpm Without Stopping the Rotation
