VSG7Plus Valve Seat Guide Machine
9999 INR/Unit
Product Details:
- General Use Industrial
- Material Steel
- Computerized No
- Automatic Yes
- Drive Type Electric
- Voltage 220-415 Volt (v)
- Feature Good Quality
- Click to View more
X
VSG7Plus Valve Seat Guide Machine Price And Quantity
- 9999 INR/Unit
- 1 Unit
VSG7Plus Valve Seat Guide Machine Product Specifications
- 1 Year
- 220-415 Volt (v)
- Red
- Industrial
- Good Quality
- Electric
- Yes
- No
- Steel
VSG7Plus Valve Seat Guide Machine Trade Information
- Nahva Sheva
- Telegraphic Transfer (T/T)
- 100 Unit Per Year
- 30 Days
- E=Wooden
- Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
- All India
- ISO 9001:2015 CE
Product Description

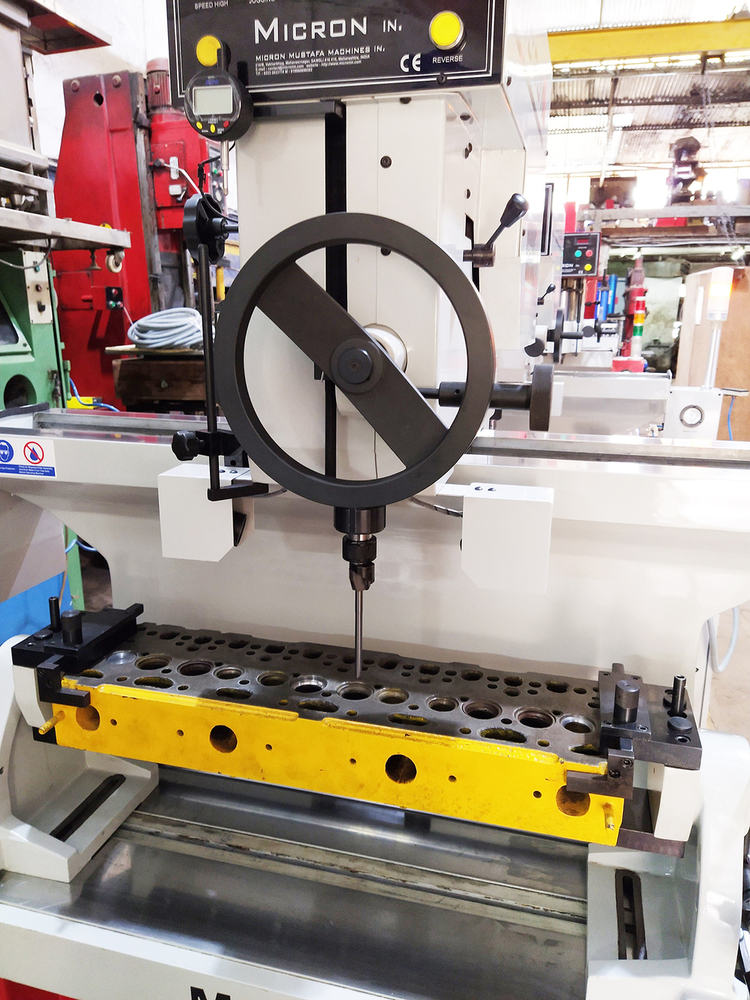

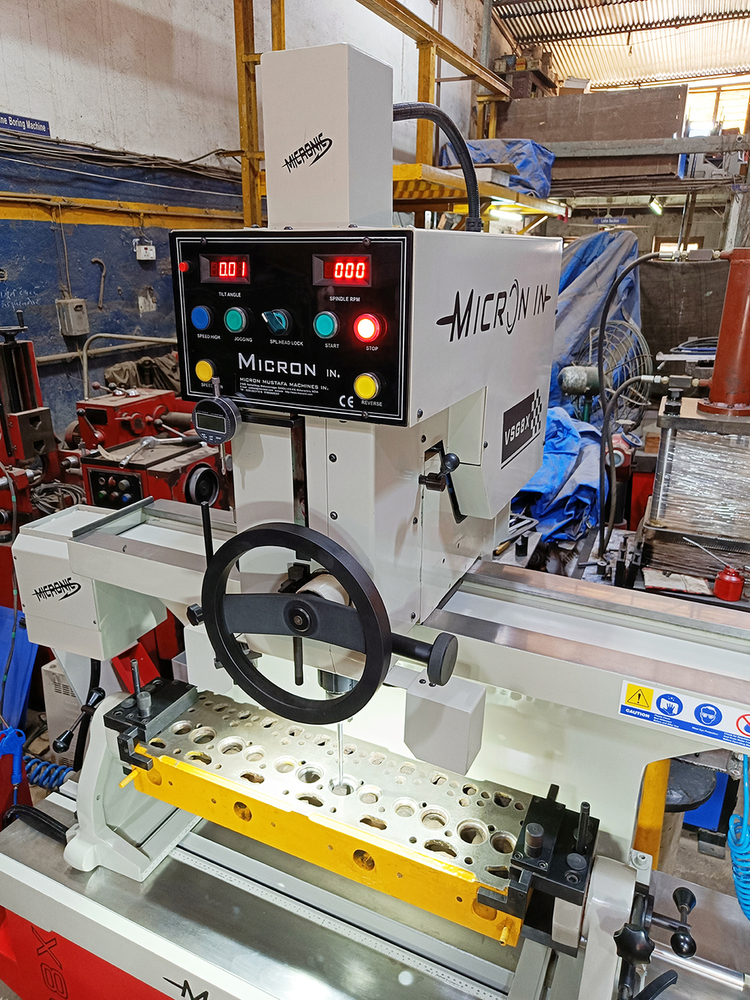

Main Feature VSG7PLUS
1 The Micron VSG7PLUS uses the proven fixedcarbide pilot tooling with front mount steering
wheel forspindle downfeed The machine has two modes of operation Front Wheel for Rapid
control feed and Side Knob wheel for Precise FineFeed
2 VSG7PLUS Spindle poweredby 1Hp 075kW High Torque AC Spindle Motor
FrequencyInvertor to control spindle torque throughout the speed range 600 Rpm Thiscontrol
Givesmaximum torque at all speeds resulting in fine surface finish even with thehardest valve
seats Found in todays CNG Engines
3 VSG7PLUS Spherical Centering System WithSolenoid Locking Power Head And Work
head Air Floats Independently in 3axis toinsure Fast And Accurate Guide Centering
4 Micron VSG7PLUS machines are manufacturedfrom heavy thick wall cast iron The all cast iron
Rigid platform is precision machinedproviding superior Accuracy as compared to fabricated
steel Rigidity is vital in producingOptimum Accurate chatter free valve seat cutting
All Cast Parts Are Flame Hardened andStress Relived which Will lead to Repeated Accuracy
and Long Last
5 Three angle single blades insert cuts allthree angles at once and produce accurate finished seat
with finer Ra Value surface with Leakproof sealing between Valve And valve seat They assure
exact seat width from head to head plusconcentricity between seat and guide
6Spindle Head Tilts to 15 degree on both Sides to accommodate any GuideAxis For
Machining of All New Generation Importedand Indian Cylinder Head
7 AdvanceDesign of Spindle Adopter Assembly with autolift
pilot mechanism reduced time to completejob with less runout and Better Concentricity
8 Takes Minimum Floor Space to Handle theComplete Range Of Heavy Automotive and Industrial
CylinderHeads
9Dial In Variable Spindle Speed 30 to 600 Rpm Without Stopping theRotation
