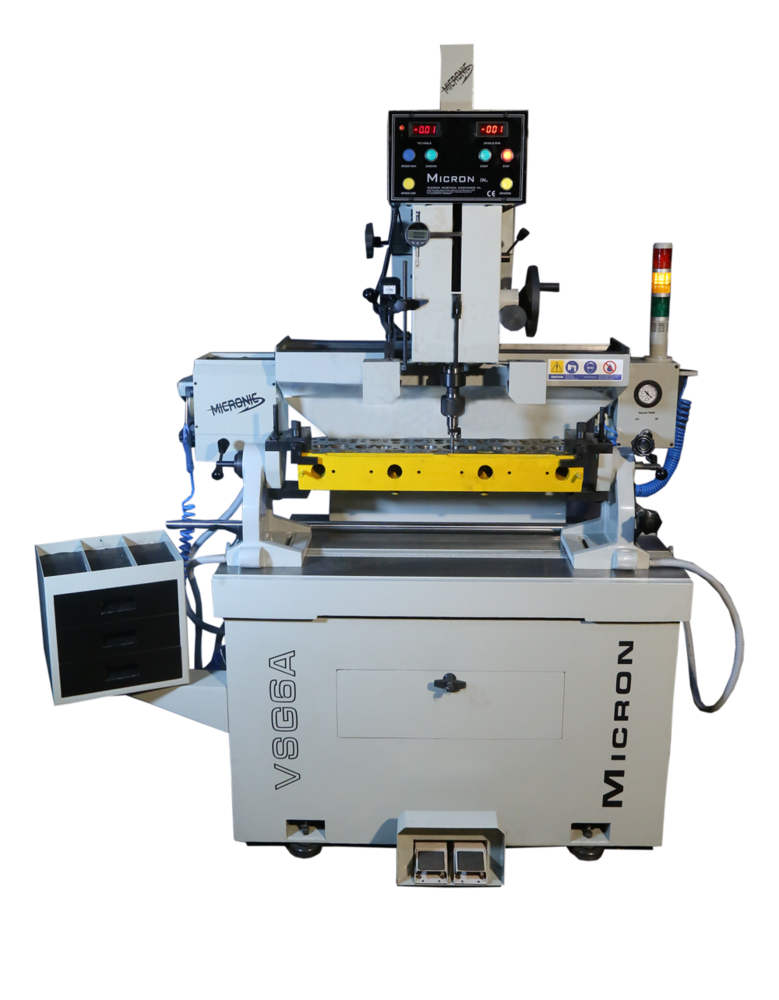

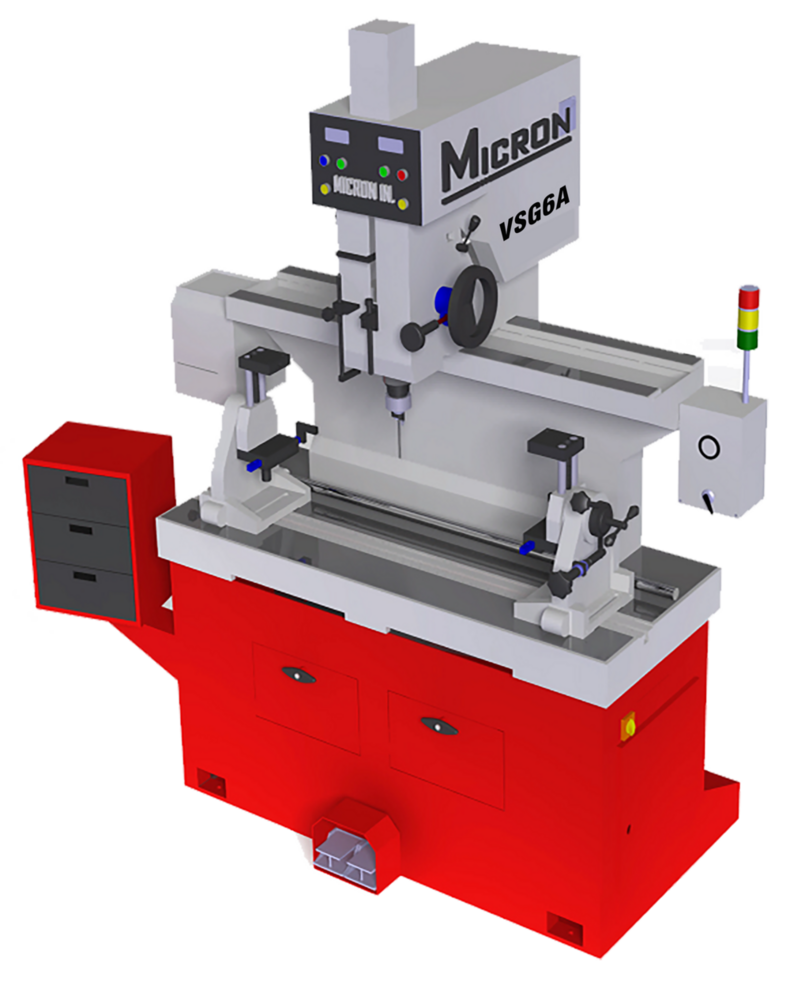

VSG6 A Valve Seat Cutting Machine

About VSG6 A Valve Seat Cutting Machine

Main Feature : VSG6A

• Micron VSG6A Double Air Float Centering System, Power Head And Work Head Air Floats Independently to insure Fast And Accurate Guide Centering with Side Hand wheel for spindle downfeed. The machine has two modes of operation, Side Hand Wheel for Rapid control feed and front Knob wheel for Precise Fine Feed.

• VSG6A Spindle powered by 1Hp(0.75kW) High Torque AC Spindle Motor Frequency Invertor to control spindle torque throughout the speed range 400 Rpm . This control gives maximum torque at all speeds resulting in fine surface finish even with the hardest valve seats found in todayïs Euro/BS norm's Engines.

• VSG6A Opts Spindle adopter, Ball holder, Fixed Carbide Pilot combination Ring Spring for lifting Ball Holder result is reduced time to complete job with less runout and Better Concentricity.

• Micron VSG6A machines are manufactured from heavy thick wall cast iron. The all cast iron rigid platform is precision machined providing superior Accuracy as compared to fabricated steel. Rigidity is vital in producing Optimum Accurate chatter free valve seat cutting. All Cast Parts Are Flame Hardened and Stress Relived, which will lead to Repeated Accuracy and Long Last

• Three angle single blades insert cuts all three angles at once and produce accurate finished seat with finer Ra Value surface with Leak proof sealing between Valve And valve seat. They assure exact seat width from head to head plus concentricity between seat and guide.

• Spindle Head Tilts to 15 degree on both Sides to accommodate any Guide Axis For Machining of All New Generation Imported and Indian Cylinder Head

• Takes Minimum Floor Space to Handle the Complete Range Of Heavy Automotive and Industrial Cylinder Heads

• Dial In Variable Spindle Speed 30 to 400 Rpm Without Stopping the Rotation
